    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Ask Lasest Price
    Brand Name : CBG, CBG
    Model Number : 18B
    Supply Ability : 5000 Piece/Pieces per Month
    Price : $360.00/sets 1-99 sets
    • Product Details
    • Company Profile

    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Products Description

    6 Meter Max Length Intelligent Car Parking Boom Barriers Gates for Vehicle Access

    A boom barrier is defined as an automatically controlled or manually operated gate made of a horizontal bar hinged at a certain point. It is automated and mechanical, controlling traffic in and out of certain locations. This arm raises and lowers, granting or restricting access to a designated area.

    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    18B Motor Parameters
    Voltage:DC24V
    Output Efficiency:140W
    Humidity:85% or lower
    Insulation Class:F
    Gate Operation Time:0.3-5S
    Altitude:1000 Meter or lower
    Current:6A
    Operation Lifetime:>=5million times
    Temperature Range:-40°C to +60°C (temperatures
    below -20°C require a heating element)
    Applications: Generally suited for controlling gates leading to highways and expressways, as well as vehichle-plate
    reading systems for gated communities and commercial parking lots.

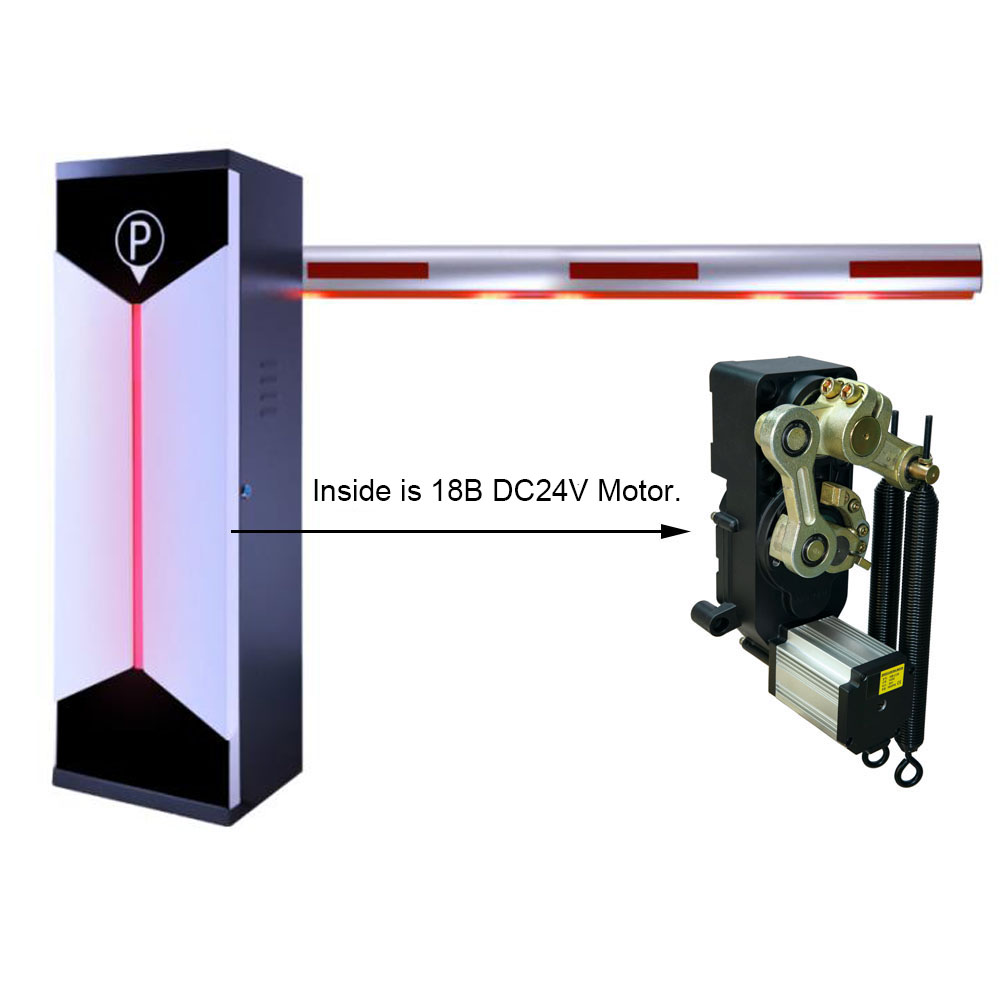

    Interior Structure
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Different color to choose
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Max length of boom is 6 Meter
    Old and New Product's Difference
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Before:

    1) Worm gear, general appearance
    2) The previous products use with Rv50 reducer and added the splint to compose the movement. The worm gear is a consumable product. After using a long time, there will be a large gap, the pole will be not stable and shake so will cause the gear reducer to grind.
    3)The products mainly used with AC 220V motor, the fixed speed was not adjustable.
    4) Open structure, a low degree of protection, easy to enter water.
    5) AC220V.
    6) During installation, needs to adjusted the magnet position to ensure the door opening angle. After a long time, the shaking will affect the limit position or the pole may be deviated downwards.
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    After:

    1) Gear transmission structure, beautiful appearance, compact structure, strong overall sense.
    2) The new products are tailor-made for this industry and the gear adopts the processing technology of worm grinding wheel grinding after heat treatment, fine rolling of hard alloy hob, etc., the accuracy grade ≥ GB / T100951, 2-2001 7 level.
    3)The new product uses with DC brushless motor to avoid the problem of carbon brush life. Adjustable speed.
    4)The entire seal structure, high degree of protection (≥IP55); have a rainproof capability.
    5) DC24V(Safe voltage)
    6) Installed the chassis, adjust the position automatically after power on, and adjust the angle of rising pole and falling pole at will.
    Packing List
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Single net weight about : 43KG(Don't include the boom arm)
    Single package carton size: 108.5X38X34CM Package Type: Carton or Wooden case
    Company Profile
    Shenzhen Chengbang Mechanical and Electrical Industry Co., Ltd. was established in 2010, located in Guangdong China. The factory with 5,000 square meter areas and more than 50 experienced employees which supply ability is 5,000pcs per month. We achanism, Brush-less gate motor, DC brush-less single unit operating mechanism, Commercial gate operating mechanism and so on). We have strong scientific technology, first-class produced lines, advanced gear testing centers and high-precision advanced equipment, imported CNC gears which are ahead of our peers in terms of quality.
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access

    Our advantages:

    1. NO MOQ limit.
    2. 24 hours delivery for stock.
    3. 2 year warranties.
    4. 10 year experiences.
    Workshop View
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Assembly Equipment
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Visit Factory
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    FAQ
    Q: Are you wholesaler or trade company?
    A: We're manufacturer of boom barrier motor and our factory is in Guangdong, China.
    Q: How long is the delivery time?
    A: 24 hours delivery for stock after full payment, for the bulk goods, need about 5-20 days.
    Q: How about your warranty?
    A: The movement's warranty is 2 years.
    Q: Do you provide sample?
    A: Yes, we can offer the sample for charge and freight collect.
    If need more details, please don't hesitate to contact with us :-)
    Exhibition
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
    Enterprise Qualification
    Intelligent Car Parking Boom Barrier Gates 6 Meter Max Length for Vehicle Access
